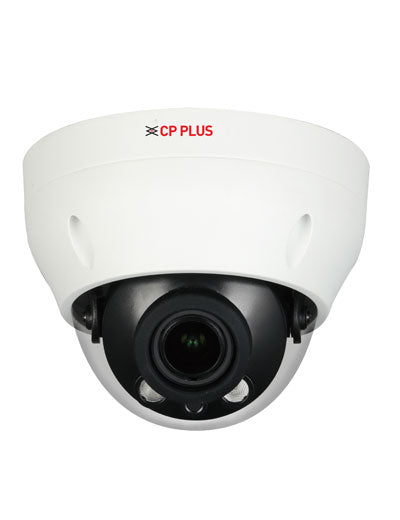

CP-USC-DC51ZL4-V3 5MP IR Dome Camera
CP-USC-DC51ZL4-V3 5MP IR Dome Camera
Regular price
Rs. 5,586.00
Regular price
Rs. 6,999.00
Sale price
Rs. 5,586.00
Unit price
/
per
- 1/2.7” 5MP PS CMOS Image Sensor (0.9407cm)
- Max. 25fps@5MP (16:9 video output)
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 2.7mm ~ 12mm Motorized lens
- IR Range of 40 Mtrs., IP67
- CVI/CVBS/AHD/TVI Switchable
-
Image Sensor 1/2.7 Minimum Illumination 0.01 Lux/F1.6; 30IRE; 0 Lux IR on Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s White Balance Auto / Manual Gain Control (AGC) AGC ICR Auto switch by ICR Lens 2.7mm~12mm Max Aperture F1.6 Iris Fixed iris Lens Type Motorized Close Focus Distance 0.5 m Mount Type Φ14 S/N Ratio >65dB Privacy Mask Off / On (8 area, rectangle) DORI Distance 2.7mm: 69.0m (Detect) 27.6m(Observe) 13.8m(Recognize) 6.9m(Identify) 3.6mm: 191.6m (Detect) 76.64m(Observe) 38.32m(Recognize) 19.16m(Identify) Back Light Compensation BLC / HLC / DWDR Video Streaming CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps; 1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps; NTSC: 4MP@30fps; CVBS: 960H Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Angle of View Diagonal: 39°–130° Horizontal: 34°–107° Vertical: 19°–55° IR IR Range of 40 Mtr., Smart IR Casing Plastic throughout the whole casing Operating Temperature -30°C to +60°C (–22°F to +140°F)/ < 95% (non-condensation) Power Source 12V DC ±30% Power Consumption Max 5.6W (12V DC; IR on) Dimension Φ122.0 mm × 98.1 mm (Φ4.80 Weight 0.34 kg
