Swiftech

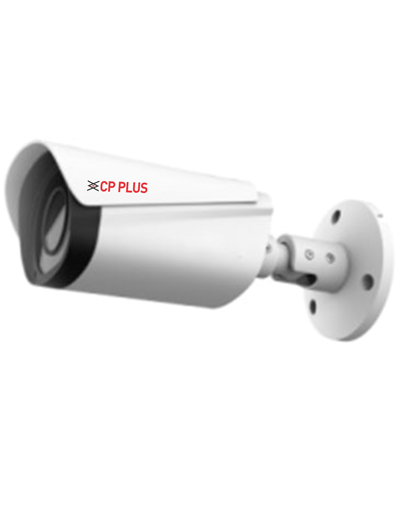

CP-USC-TA50L5-S 5MP IR Bullet Camera
CP-USC-TA50L5-S 5MP IR Bullet Camera
Regular price
Rs. 3,291.00
Regular price
Rs. 4,588.00
Sale price
Rs. 3,291.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- 1/2.7” 5MP Progressive scan CMOS Image Sensor (6.858cm)
- Max 25fps@5MP (16:9 video output)
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 3.6mm Fixed lens (6mm optional)
- IR Range of 40-50Mtrs., Smart IR, IP67
- Support Starlight Technology
- CVI/CVBS/AHD/TVI switchable
- Image Sensor1/2.7" 5MP PS CMOS (6.858cm)Minimum Illumination0.005 Lux/F1.6, 30IRE, 0 Lux IR onEffective Pixels2880 (H) × 1620 (V)Shutter SpeedPAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000sWhite BalanceAuto / ManualGain Control (AGC)Auto / ManualICRAuto switch by ICRLens3.6mm (2.8mm, 6mm optional)Max ApertureF1.6Auto IrisFixed IrisLens TypeFixed-focalS/N Ratio>65dBDORI Distance3.6mm: 80m (Detect) 32m (Observe) 16m (Recognize) 8m (Identify) 6mm: 120m (Detect) 60.2m (Observe) 24m (Recognize) 12m (Identify)Back Light CompensationBLC / HLC / DWDRVideo StreamingCVI: PAL: 5M@25fps; 4M@25fps; 1080P@25fps; NTSC: 5M@25fps; 4M@30fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30fps TVI: PAL: 4M@25 fps; NTSC: 4M@30fps; CVBS: PAL: 960H; NTSC: 960HPrivacy MaskOff/on (8 area, rectangle)Angle of View3.6mm: 109° × 92° × 48°(diagonal × horizontal × vertical) 6mm: 65° × 57° × 30° (diagonal × horizontal × vertical)IRIR Range of 40-50 Mtr., Smart IRCasingMetal front cover+ plastic main body + metal bracketOperating Temperature-40°C ~ +60°C (-40°F ~ +140°F) ; <95% (non-condensation)Storage Temperature-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)Power Source12V DC ±30%Power ConsumptionMax 3.2W (12V DC, IR on)Weatherproof StandardIP67Dimension240.7 mm × 90.7 mm × 90.4 mmWeight0.41 kg
