Swiftech

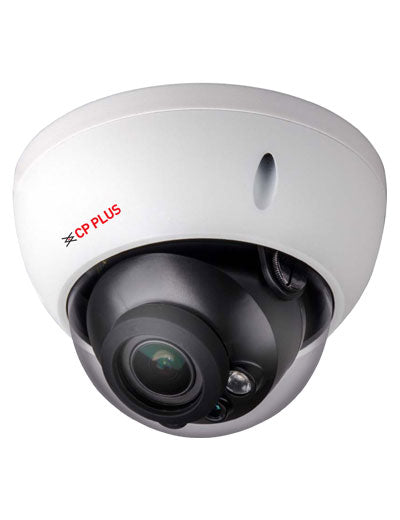

CP-USC-VA24ZR3 2.4MP IR Vandal Dome Camera
CP-USC-VA24ZR3 2.4MP IR Vandal Dome Camera
Regular price
Rs. 4,389.00
Regular price
Rs. 5,897.00
Sale price
Rs. 4,389.00
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
- 1/2.7" 2.4MP PS CMOS Image Sensor (0.9407 centimeters)
- Max 25/30fps@2.4MP
- DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC
- 2.7mm~12mm Motorized Lens
- IR Range of 30Mtrs., Smart IR, IP67, IK10
- OSD Menu, control over coaxial cable, 2D-DNR
- CVI/CVBS/AHD/TVI switchable
-
Image Sensor 1/2.7" 2.4MP PS CMOS (0.9407 centimeters) Minimum Illumination 0.02Lux/F1.7, 30IRE, 0Lux IR on Shutter Speed PAL: 1/25s–1/100000s ; NTSC: 1/30s–1/100000s White Balance Auto / Manual Gain Control (AGC) Auto / Manual ICR Auto switch by ICR Lens 2.7~12mm Max Aperture F1.7 Close Focus Distance 1.2m Iris Fixed Iris Privacy Mask Off/On (8 area, rectangle) Mount Type φ14 Lens Type Motorized S/N Ratio >65dB DORI Distance 2.7mm: 49.7m(Detect); 19.9m(Observe); 9.9m(Recognize); 5m (Identify) 12mm: 82.8m(Detect); 33.1m(Observe); 16.6m(Recognize); 8.3m (Identify) Back Light Compensation BLC / HLC / DWDR Video Streaming CVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; AHD: 2.4MP@25/30fps; 720P@25/30fps; TVI: 2.4MP@25/30fps; 720P@25/30fps; 720P@50/60fps; CVBS: 960H Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Angle of View Diagonal: 38°– 125° Horizontal: 33°–102° Vertical: 19°– 53° IR IR Range of 30 Mtr., Smart IR Casing Plastic dome cover + metal upper casing + metal pedestal Operating Temperature -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% (non-condensation) Power Source 12V DC ±30% Power Consumption Max 6.3W (12V DC, IR on) Weatherproof Standard IP67 & IK10 Dimension φ122.0 mm × 88.9 mm Weight 0.44 kg
